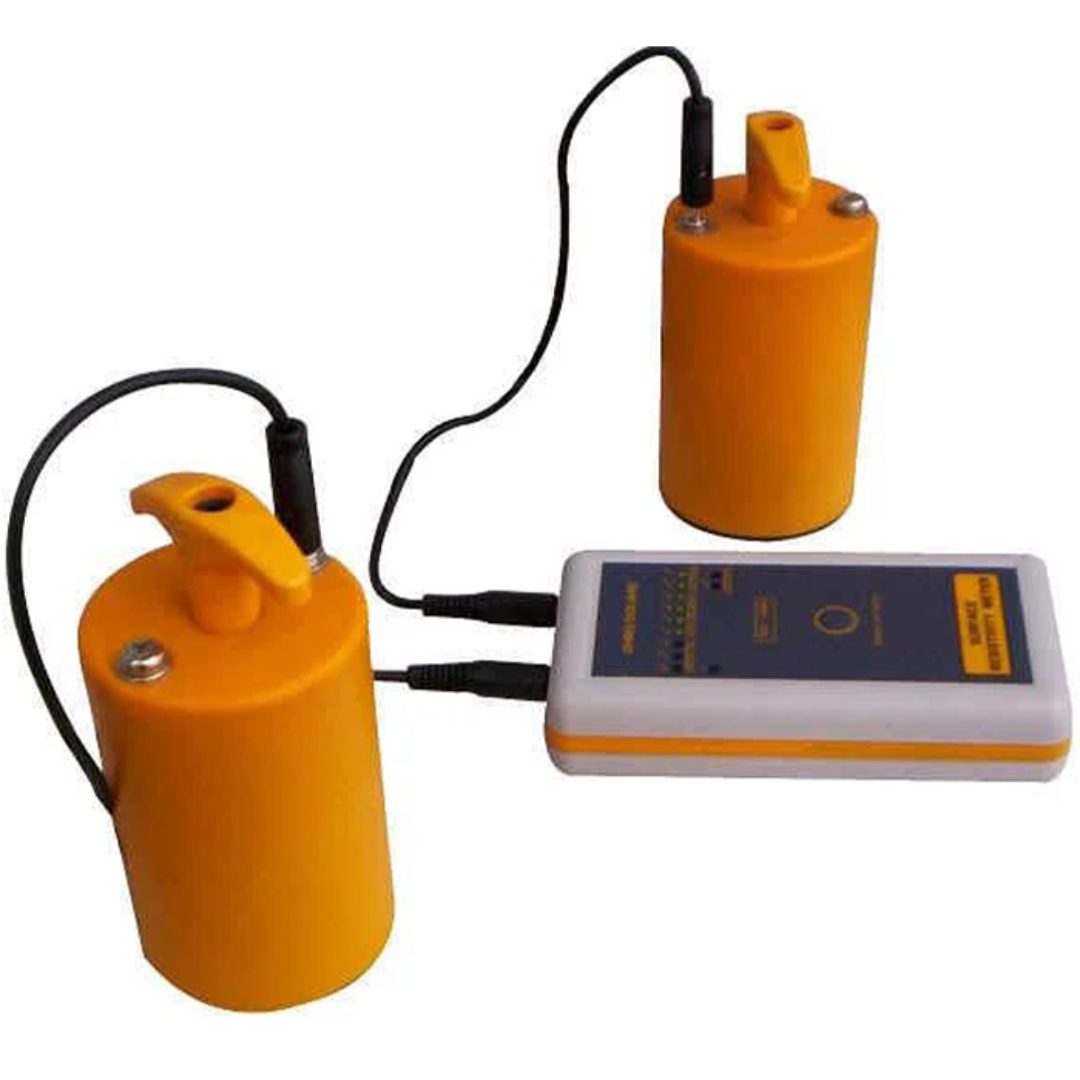

100V Surface Resistivity Meter

The model SRM-02 surface Resistivity meter is a portable, versatile, instrument designed to accurately measure resistance between two points, surface to ground, and surface Resistivity is accordance with EOS/ESD Association standard S-4.1. The Surface Resistivity meter (included TESTING & MEASURING PROBES) is designed to make all the measurements.


Measurement Range : <103 to >1012 Ohms or Ohms/sq

Measurement Accuracy : Half decade

Resolution : One decade

Test Voltage : 100V.

Indication : Different Color LED’s

Test actuation : Press To Test

Power supply : 9 Volt Battery

Low battery : Warning at Test Voltage Of 80V

Dimensions : 135 x 70 x 30mm

Weight : App. 200 Gms (With Battery)

Calibration : Recommended every 12 months

Warranty : 12 Months

Accessories included : Surface to Ground cord

Optional : Testing & Measuring Probes.
