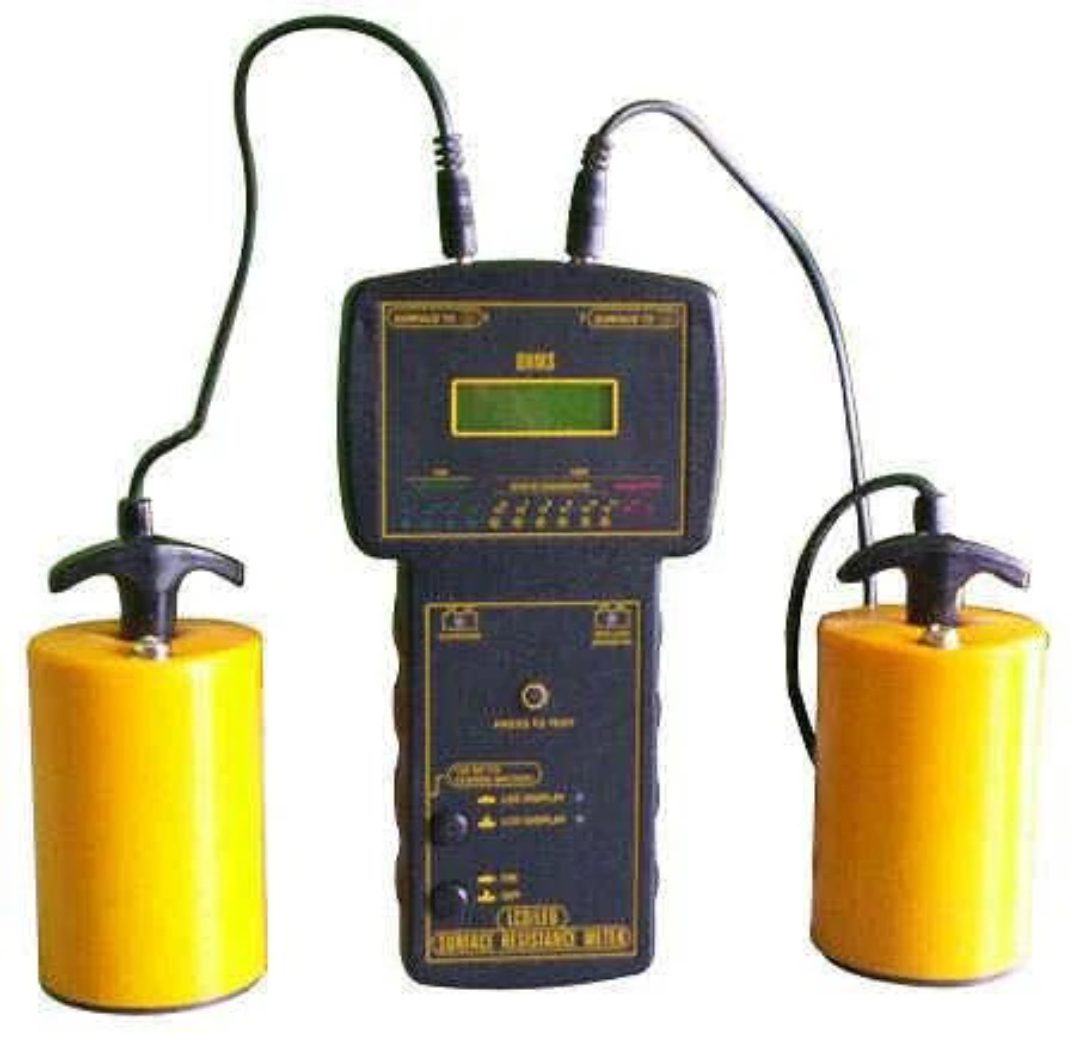

Digital Surface Resistivity Meter

The Surface Resistivity Meter measures both surface resistance and resistance to ground. This is meant for use in evaluating a wide variety of ESD protective materials including tablemats, floor mats, and hard ESD laminates. It measures and displays Surface Resistivity as well as surface to ground and point-to-point resistances. These measurements can be done in the range of <10E3 to >10E12 ohms by using two 2.5-kilo (5lb) heavy electrodes or through internal probes. To check whether surface Resistivity is in accordance with EOS/ESD Association standards S-4.1.


Measurement Range (LCD) : ≤ 1X10E3 to ≥1X10E12 ohms & ohms/sq

Measurement Range (LED) : < 10E3 to > 10E12 ohms & ohms/sq

Measurement accuracy (LCD) : 0.1 decade

Measurement accuracy (LED) : 0.5 decade

Probe Voltage : 100V +/- 5%

Battery indicator : Green when battery is fully charged

Red for low battery

Test actuation : Press To Read

Power supply : 9V Rech-Battery

Dimensions in mm : 210 x 110 x 40mm

Weight : 500 gms

Calibration : calibration recommended once In 12 months.

Warranty : 12 months from date of Manufacturer

Optional : Testing & measuring probes Esd Audit kit

Accessories : External cable & 12V Charger.
