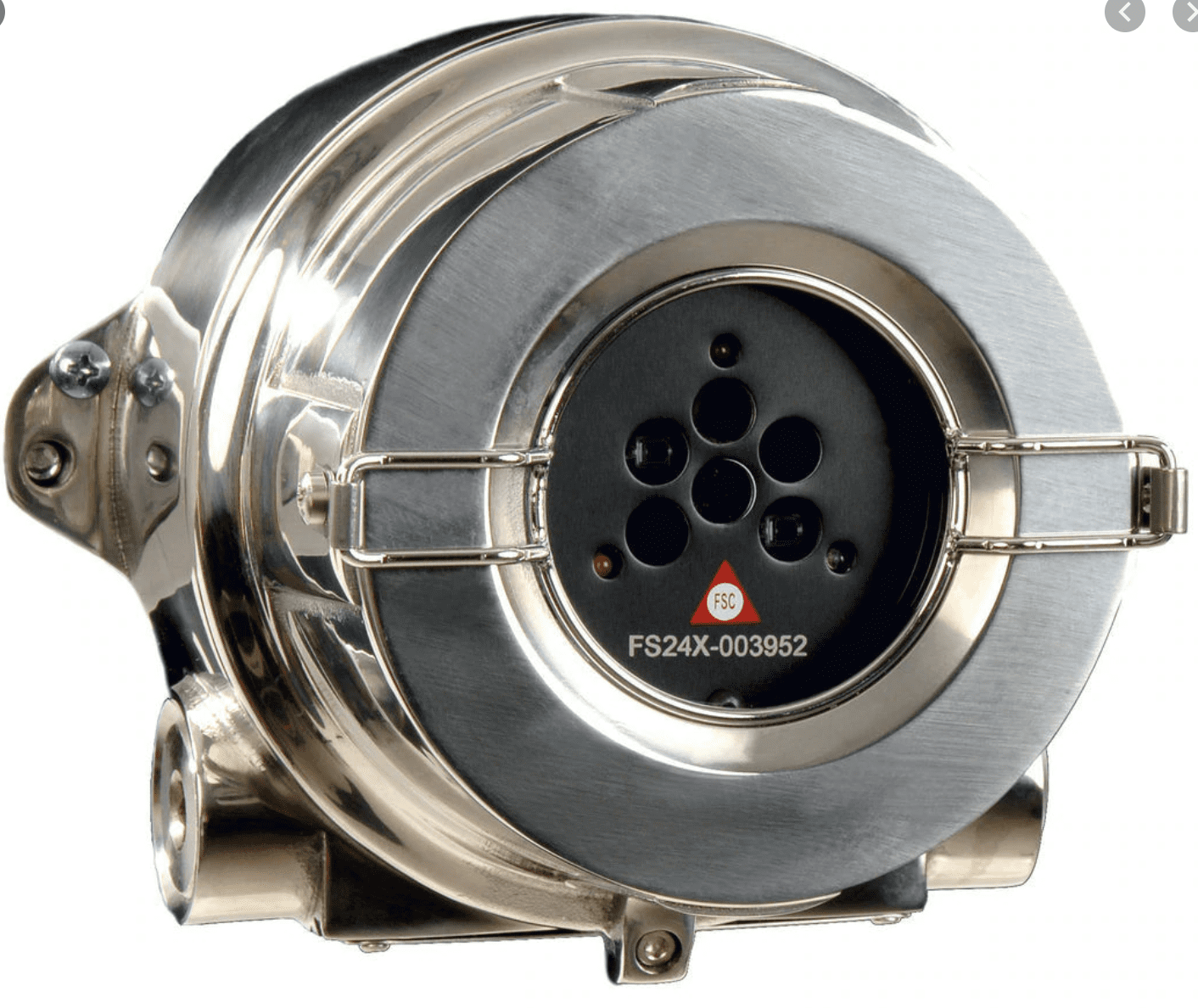

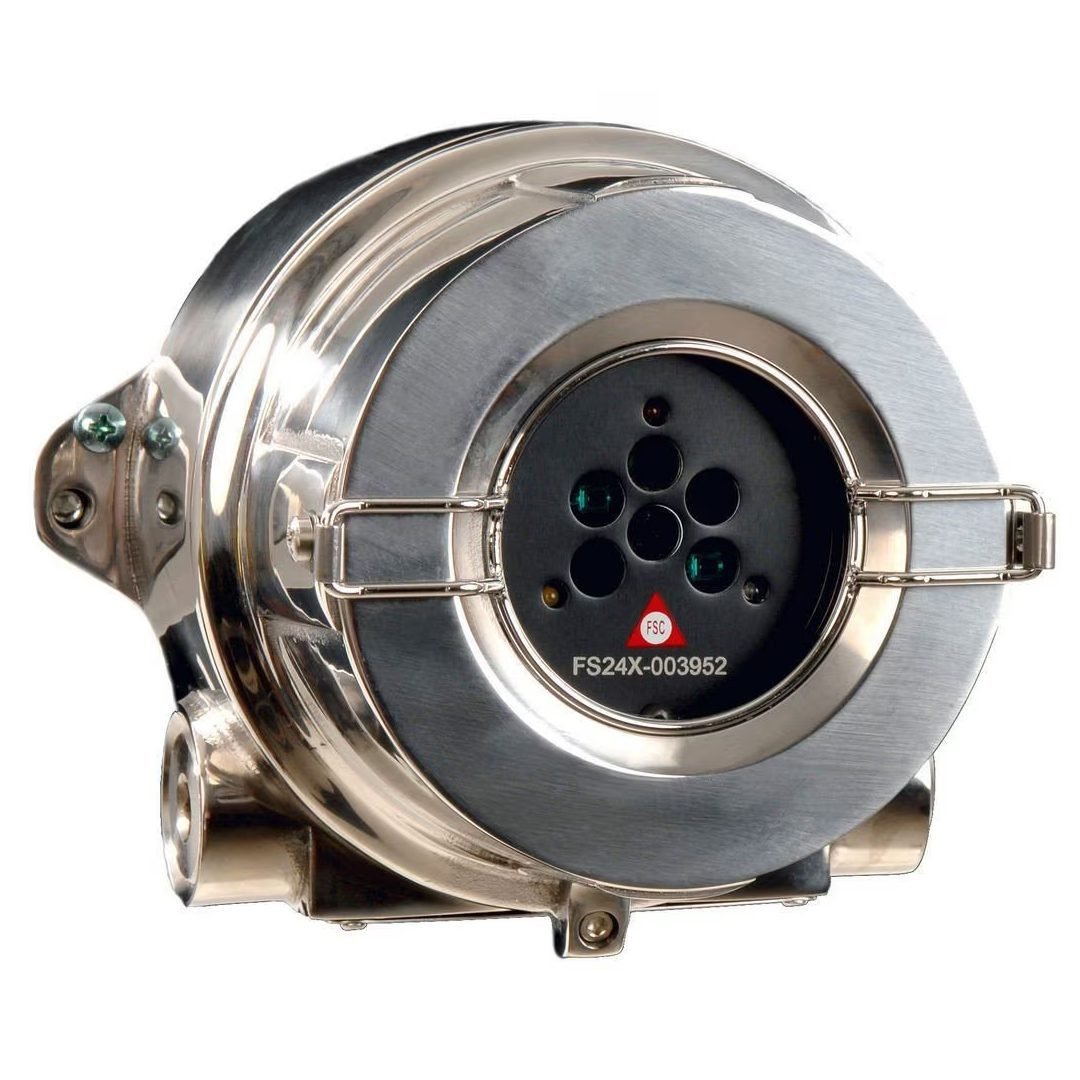

Honeywell FireSentry FS24X
- The Honeywell Fire Sentry FS24X is a cutting-edge Multi-Spectrum Triple IR (IR/IR/IR/Visible) flame detector,
- representing the latest advancement in the FSX family of high-performance electro-optical fire detection systems.
- Engineered with patented WideBand IR™, WideBand 4.3 micron IR™, and Visible Light Detection Technology,
- the Honeywell Fire Sentry FS24X delivers exceptional fire detection capabilities across a wide range of fire types and environments.
- Triple IR + Visible Detection: Utilizes advanced IR/IR/IR/Visible sensing to accurately detect
- hydrocarbon and non-hydrocarbon fires in even the most challenging conditions.
- Patented WideBand IR™ Technology:
- Employs high-speed, solid-state Quantum IR sensors to detect flames with extremely fast response times.
- Capable of operating reliably through weather variations, including rain, fog, and smoke.
- Enhanced False Alarm Rejection:
- Features dual microprocessors and sophisticated signal processing algorithms that deliver
- high sensitivity to real fires while reducing the risk of false alarms from non-fire sources.
- Glass-Obstructed Detection Capability:
- Even when standard window glass partially blocks the detector’s signal, the WideBand IR sensors can still detect a fire
- with reduced sensitivity and slower response time, ensuring continued protection.
- Part of the FSX Series:
- Built with the same advanced electro-optical technology found across the FSX line,
- designed for high-risk industrial environments.
Features
- Patented* WideBand IR™ Technology
- Patented* Electronic Frequency Analysis™
- Visible Sensor for optimum false alarm rejection
- Selectable detection sensitivities
- Field-of-View: 110° full 100% cone-of-vision (90° full 100% cone-of-vision model also available)
- Dual microprocessors for reliable performance
- Real-time clock for accurate time dating of events
- FirePic™ — pre-fire event data storage
- Event log with date and time stamp
- RS-485 ModBus communication
- Non-Isolated 4-20 mA Analog output (sink or source)
- Alarm, Fault and Fire Verification relays
- Automatic optical path and electronic self-test
- Widest operating temperature range
- Patented* Electronics Module for components protection with easy plug-in terminations and field installation
- Two ¾” NPT OR 25mm conduit entries
- Low power consumption
- High RFI and EMI immunity
- FM, ATEX, CE mark approvals
- Meets SIL 2 requirements
Benefits
- Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions
- User selectable outputs
- Optimal false alarm rejection for all environmental conditions
- Minimal maintenance for trouble-free operation
- PC software and Interface Module (FSIM) for fault diagnostics, real-time graphics (RTGs), and downloading of FirePics™ and event log
- Suitable for a wide variety of applications
- Easy electronics module replacement
- Test lamps for manual testing.
