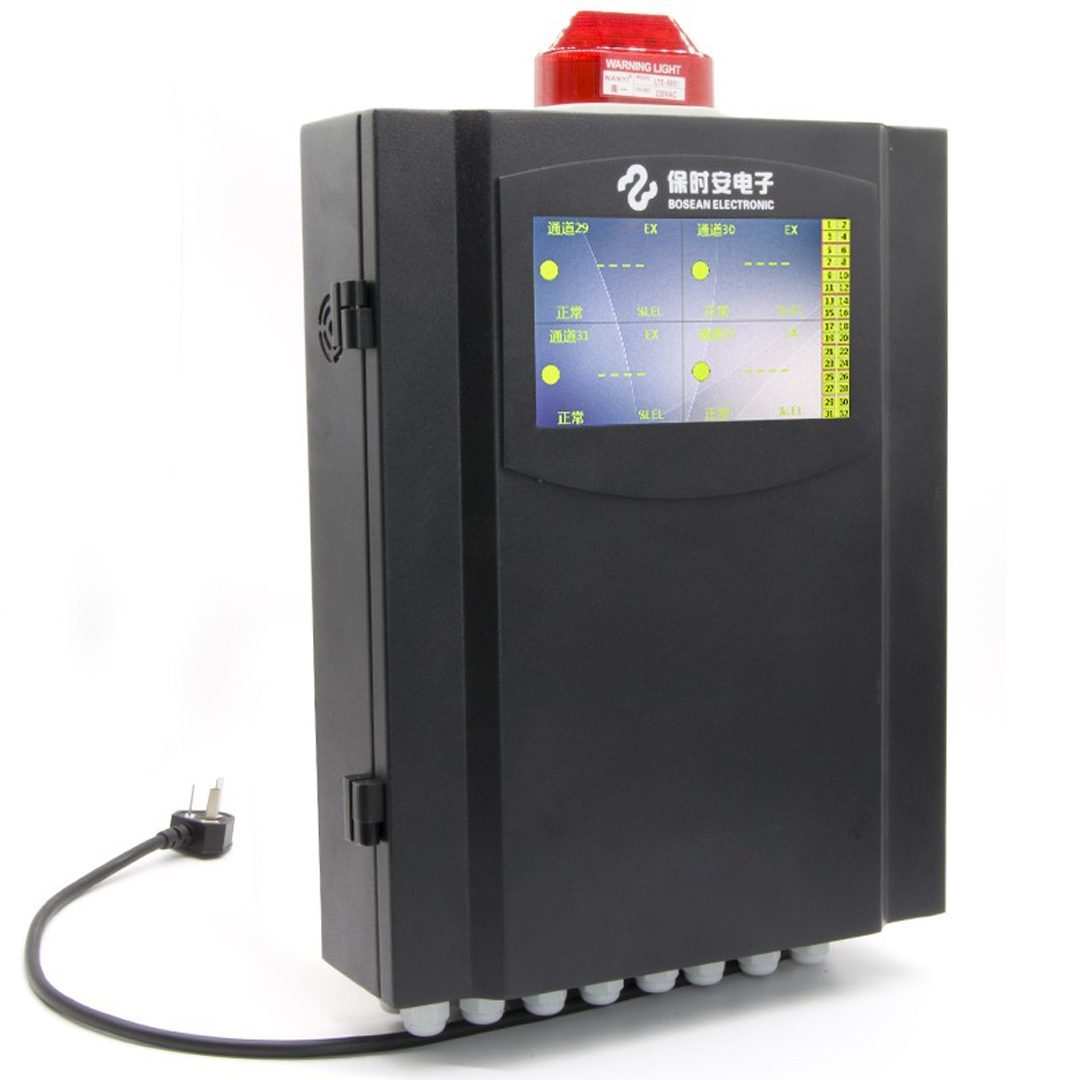

Bosean BH50 Touchscreen
Bosean BH50 Touchscreen product is an intelligent controllable system for signal input of 8-channel/16-channel/32-channel (4-20) mA/RS485 transmitter developed by the company. The product adopts industrial touch 4.3 inch / 7 inch LCD screen, featuring high stability, high accuracy and high intelligence.
| External port： | 8 roads, 16 roads, 32 roads |
| Display method： | 4.3inch/7inch Industrial touch LCD screen |
| Operating Voltage： | 220V±10%，50Hz |
| System power consumption： | ≦10W |
| Signal input： | Two-wire 4~20mA, three-wire 4~20mA or four-wire RS485 |
| Signal output： | Two-wire RS485 (MODBUS) |
| Operating temperature： | -10℃～50℃ |
| Working humidity： | 0-95%RH (no condensation) |
| Relay control port： | Passive relay output, full load power 1kW |
| Installation method： | Wall mounting |
| Dimensions (4.3 inch screen)： | 380x230x10mm（L*W*H） |
| Dimensions (7-inch screen): | 440x290x10mm（L*W*H） |
- The external control port is rich, users can freely choose the type of plug-in transmitter and access port, and set it easily.
- On-site inspection and alarms are available.
- The system has integrated sound and light alarms and provides a relay normally open control terminal.
the system will perform a series of alarm actions
Collect standard 4~20mA signal input or RS485 communication input (optional), analyze and display the current gas concentration of each channel,
and operate related alarm signals, and transmit the information to the computer through RS485 bus Bosean BH50 Touchscreen.
