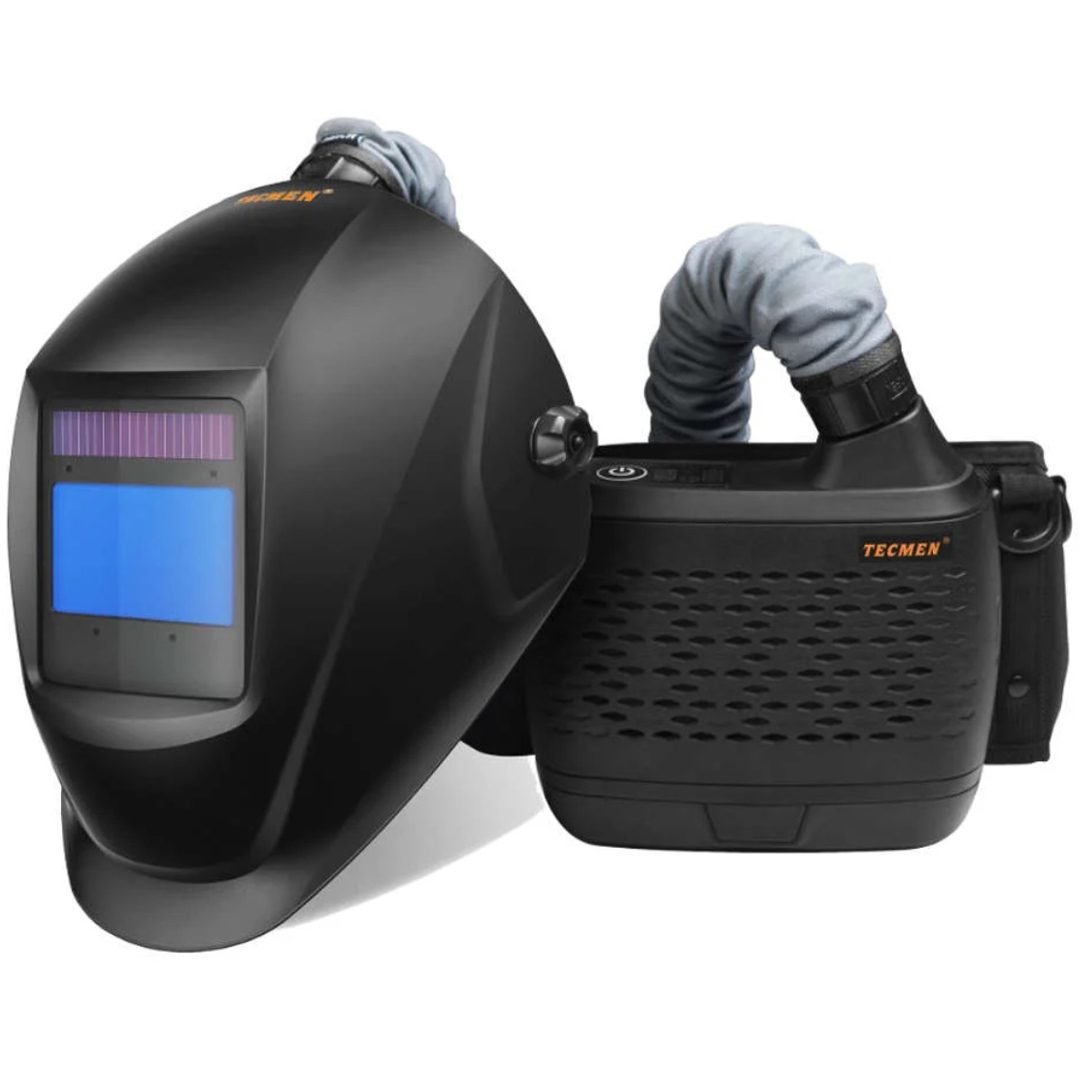

Tecmen V1 PAPR Air Fed Welding Helmet
The Tecmen V1 PAPR Air Fed Welding Helmet is a powered purifying respirator system that will deliver filtered to the operator for up to 9 hours.
This auto darkening helmet is suitable for welding, cutting and grinding tasks and features a 97mm x 62mm viewing area.
The complete air blower unit, including lithium-ion battery, weighs 1.2kg and is fitted around the waist by an adjustable belt.
PAPR Specifications:
- Airflow Rate (lpm): Low 170 / High 210
- Battery: Rechargeable Li-ion
- Battery Charge: 1 hr standard / 2 hr extended
- Battery Life: 550 charges
- Filter Efficiency: 99.97%
- Alarms: Visible, Audible, Vibrate
- Weight 1.2kg
- Standard: EN12941 TH2, NIOSH 42 CFR84 AS/NZS 1716
ADF800S Helmet Specifications:
- Optical Class: 1/1/1/1
- Viewing Area: 97 x 62mm
- Cartridge: 133 x 114 x 9mm
- Arc Sensor: 4
- Light/Dark State: DIN3.5 / DIN 5-8 / DIN 9-13
- Shade Control: Internal, Variable Shade
- Power On/Off: Fully automatic
- Switching Time: 1/25,000 s light to dark
- Delay (Dark to Light): 0.1 ~ 1.0s by dial control
- Low Amperage TIG rated (AC – DC): ≥ 2 amps
- Tecmen V1 PAPR Air Fed Welding Helmet.
