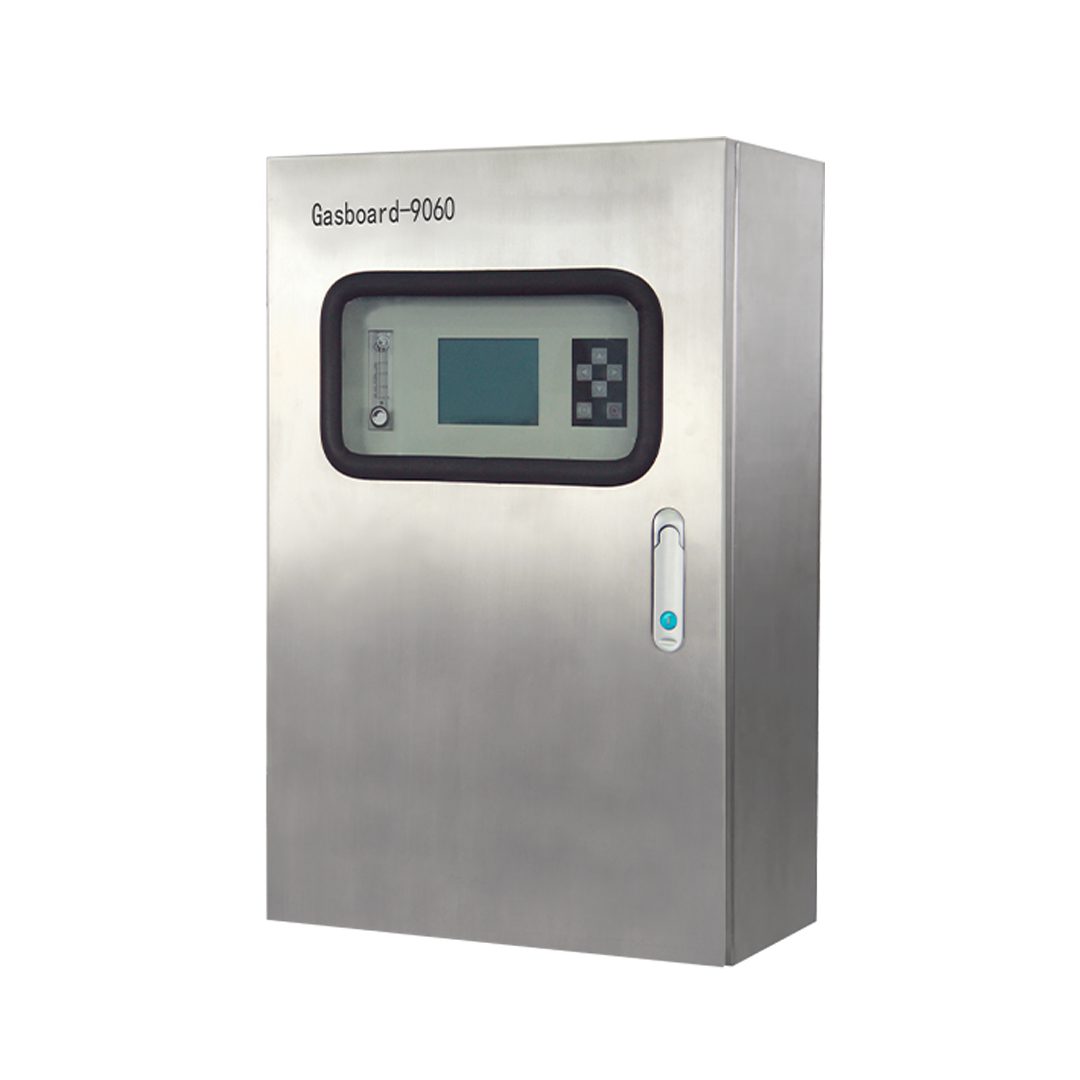

GasBoard 9060 Online Biogas Analyzer

Gasboard-9060 Online Biogas Monitoring System is designed to measure the concentration of CH4 ,CO2 ,H2S and O2 continuously in different biogas applications. It consists of four parts: Gas sampling and conditioning unit, Gas analysis unit, Control unit for auto drain and Data transmission, multiple sampling points is supported. Automatically proceed sampling, analyzing, drainage and so on process. Realized unattended operation 7*24hrs biogas monitoring.



  • Gasboard-9060 measures CH4, CO2 and O2 gases for continuous monitoring

    • The modular sensor design enables users easy on serviceability and onsite maintenance

    • Supports multiple sampling points

    • Optional heater or cooler is available applied to different applications condition.

    • Adopts self-developed H2S modular with auto air purge to applied to high/ low H2S monitoring.

    • Free maintenance gas conditioning unit and corrosion resistant design.

    • Equipped with 7 inch touch screen to display real time data timely.

    • Comprehensive technical proposal, installation and after-sales services.

Applications: Biogas plants, landfill sites, water treatment, sludge digestion, biomethane production, CDM project ,anaerobic digestion and other fermentation processes.
