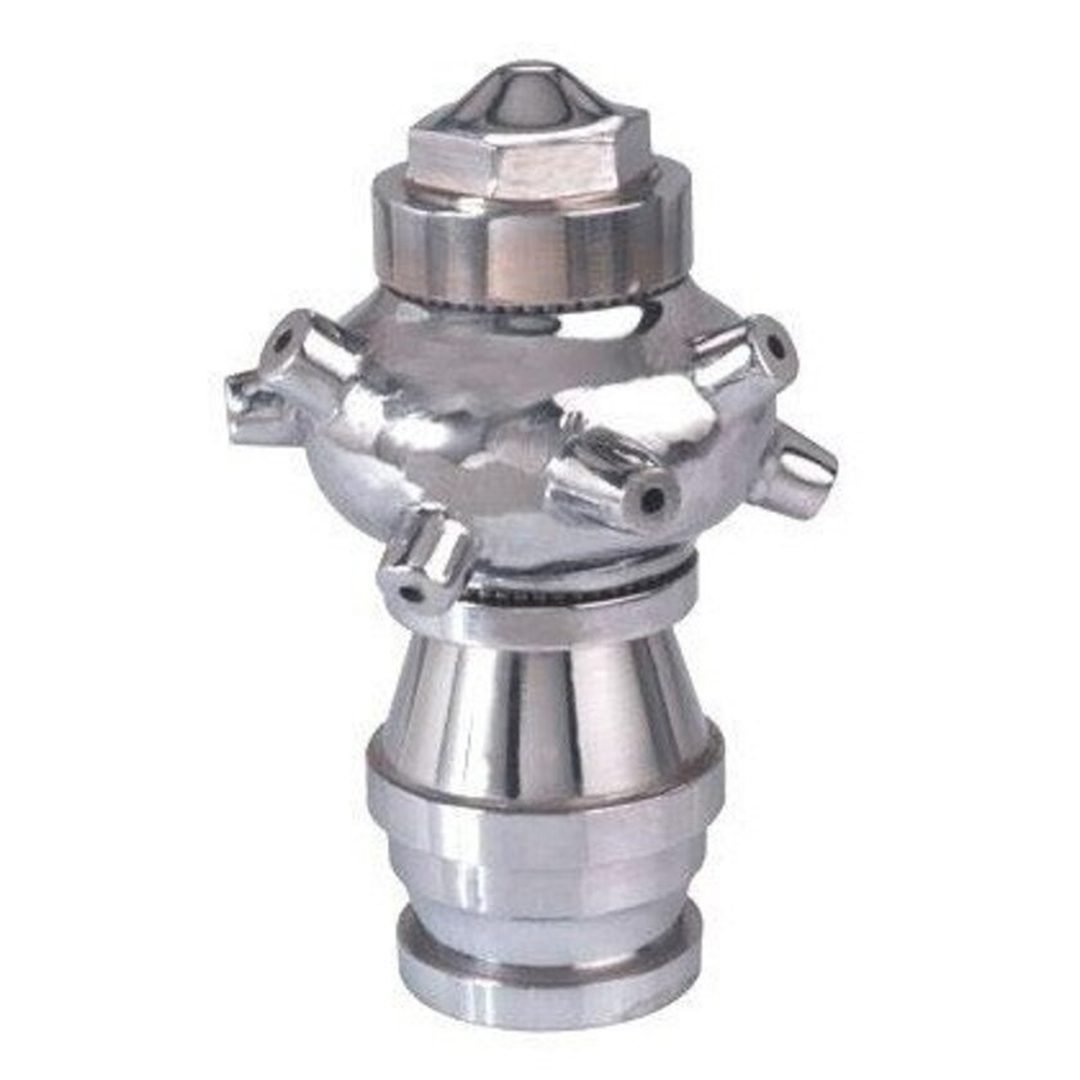

Revolving Nozzle
- The Revolving Nozzle, also known as a rotating or spinning nozzle,
- Is a specialized firefighting nozzle designed to deliver a continuous.
- Nozzle uniform spray pattern by rotating under water pressure.
- This Nozzle is highly effective for cooling, foam application, and extinguishing fires,
- particularly in confined spaces, tanks, or areas where wide coverage is required.
- Resistance against corrosion
- High strength
- Durable quality
- Cost effective prices.
- Equipped with internal vanes or fins that utilize the water pressure to rotate the nozzle head
- creating a revolving spray pattern without the need for external power.
- Produces a 360-degree uniform circular spray, ideal for complete area coverage.
- The spray angle and droplet size may vary based on design.
- Typically available with standard 63mm (2.5”) male instantaneous inlet
- (BS336 standard or customized options) compatible with fire hoses, hydrants, and fixed systems.
- Available in various flow capacities, commonly ranging from
- 400 LPM to 1000 LPM or more, based on the application requirements.
- Designed to operate effectively at working pressures of 7 kg/cm² to 10 kg/cm² or higher.
Revolving Nozzle
