Cheetah Alcohol Detector
Thanks for using our hand‐held breath alcohol analyzer: AT-Police is a rapid
breath Cheetah Alcohol Detector analyzer for quick testing with following features:
- UK made Electrochemical/Fuel cell sensor with high reliability;
- Quick and Precise Analysis;
- Rapid and convenient, do not need mouthpieces;
- With Traffic baton and flashlight illumination function
- Large battery capacity, can testing for 8 hours.

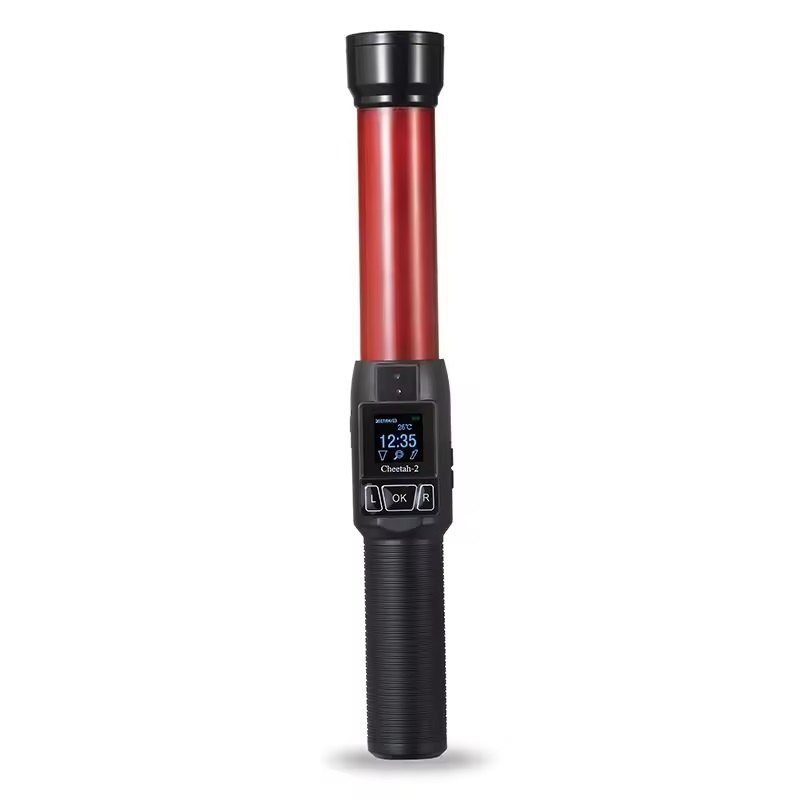

PRODUCT PICTURE & DESCRIPTION
1. L button (left button for records query)
2. Middle K button (on/off button)
3. R button (right button for alcohol test)
4. USB Port (connect with PC/charger)
5. Charging indicator (turn green if fully charged)
6. Air inlet (accept breath sample)
7. LED
8. Torch on/off button (with device power off, press torch button to turn on/off
torch.)
9.Flashlight button (with device power off, press torch button to turn on/off
flashlight)
General Details
| Display | LCD Display |
| Measurement Range | 0.50% BAC |
| | Blowing distance 5-6cm |
| Accuracy | 99.9% good |
| Alcohol Tester Type | Non Contact / Contactless, No need of any pipe for blowing |
| Analyzering Time | <5s |
| Analyzing Time | 3 s |
| Blow distance | 5-6 Cm |
| Clearing Time | 10 sec max |
| Clearing Time | <10s |
| Continuous Working Time | More than 8 hours |
| Details | Technical Data |
| Dispaly | LCD screen |
| Measurement Range | 0-100mg/100ml BAC |
| Measuring Time | 1 Sec Minimum |
| Measuring Time | Adjustale (Minimum time: 1 second) |
| Operation Temperature Range | -5°C -45°C |
| Principle of Measurement | Electrochemical Sensor, alcohol-specific |
| Storage Temperature Range | -30°C -70°C |
| Test Mode | Qucik testing, automatic sampling |
| Torch | LED lighting |
| Usage/Application | Workplace |
| Virboration Alarm | Vibration Alarm for Alcohol above setpoint detected |
| Way of Breath Sampling | Motor continuos air extration, speed no less than 0.8L |
| Working Humidity | 45-85%r.h |
| Working Pressure | 600-1400hPa |
