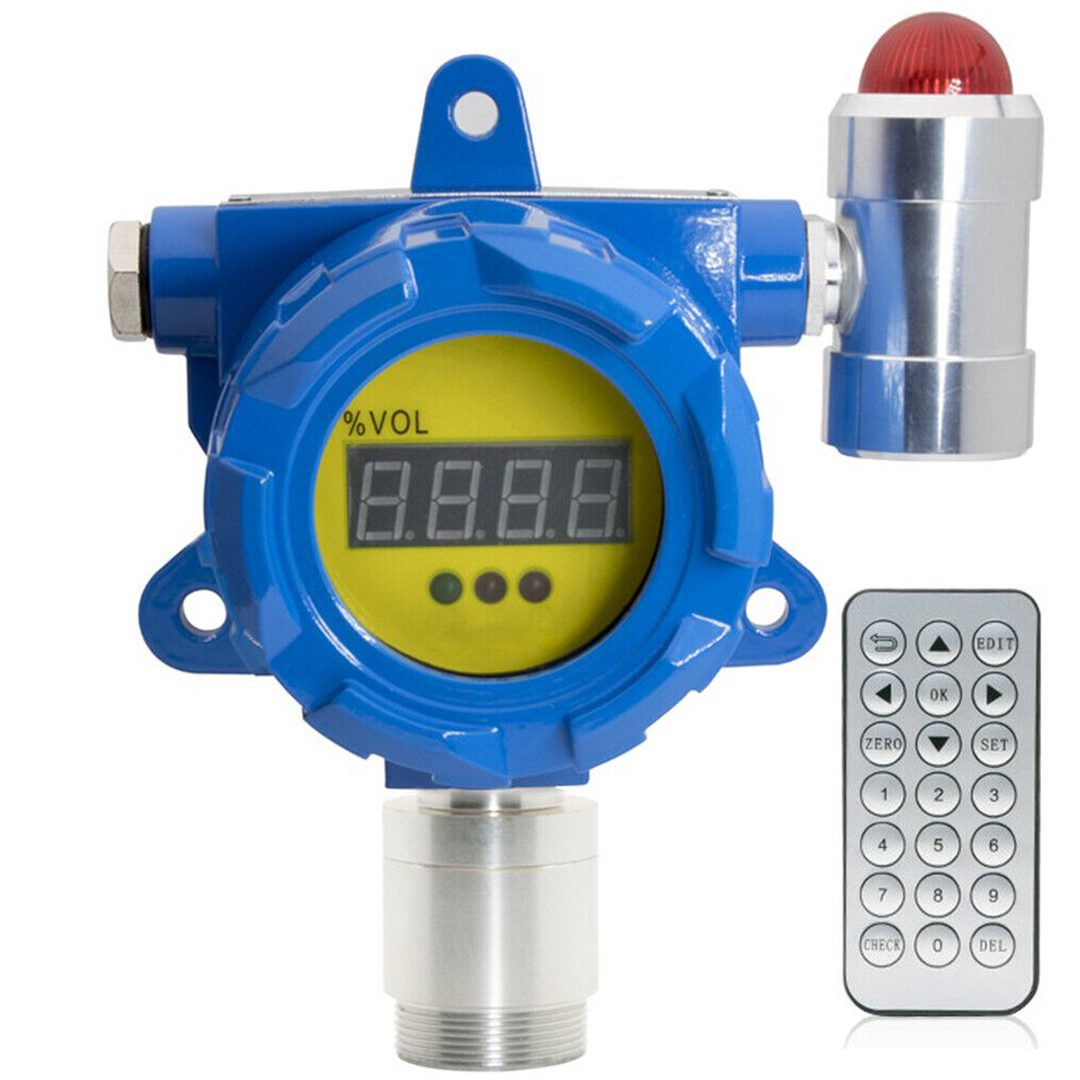

Bosean BH 60
BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists. ATEX & SIL2 Certified.
| Gas Detected | Ex, O2, CO, H2S, CH4, NH3, CL2, HCL, H2, NO, NO2, NOX, CH2O, O3, CO2, SO2, ETO, PH3, HCN, N2, HF |
| Detection principle | catalytic or electrochemical or PID’s or infrared principles |
| Sampling Method | wall, pipeline, flow-through (with the monitoring of the environment-related) |
| Resolution | 1%LEL, 0.1ppm, 1ppm, 0.01%vol |
| Precision | ＜5% F.S. |
| Output signal | 4-20mA ,0-5V, RS485, relays, wireless digital (optional) |
| Response Time | ≦30S |
| Recovery Time | ≦10S |
| Repeatability | ≦±1% |
| Linearity error | ≦±1% |
| Zero shift | ≦±1% (FS / year) |
| Display Technology | Display high brightness LED display |
| Connection mode | G1 / 2 male proof hose pipe thread size Thread size M45 * 2mm |
| Working temperature | -20℃-55℃ |
| Explosion-Proof | Ex d II CT6 |
| Working voltage | DC 24V |
| Dimensions | 190×150×95mm |
| Cable requirement | 4-20mA, RVVP, 3-line, ≧1.5 mm2 |
| Modbus, RVVP, 4-line, ≧1.5 mm2 |
| S.No. | Gas | Range | Detection Accuracy | 90% Response Time | Minimum Readout | Alarm Set Point Low/High |
| 1 | PH3 | 0-2000ppm | ±5%(F.S) | ≦25s | 0.01ppm | 0.3/5ppm |
| 2 | O2 | 0-30%vol | ±5% | ≦15s | 0.10% | 19.5%/23.0% |
| 3 | EX | 0-100%LEL | ±5%(F.S) | ≦5s | 1%LEL | 25.0%/50.0%LEL |
| 4 | CO | 0-1000ppm | ±5%(F.S) | ≦25s | 1ppm | 50ppm/100ppm |
| 5 | CO2 | 0-5000ppm | ±5%(F.S) | ≦25s | 1ppm | 1000ppm/2000ppm |
| 6 | H2S | 0-100ppm | ±5%(F.S) | ≦30s | 1ppm | 10ppm/20ppm |
| 7 | NO2 | 0-20ppm | ±5%(F.S) | ≦25s | 0.1ppm | 3ppm/10ppm |
| 8 | NO | 0-250ppm | ±5%(F.S) | ≦60s | 1ppm | 25ppm/50ppm |
| 9 | SO2 | 0-100ppm | ±5%(F.S) | ≦30s | 0.1ppm | 2ppm/10pppm |
| 10 | CL2 | 0-20ppm | ±5%(F.S) | ≦30s | 0.1ppm | 1ppm/10ppm |
| 11 | NH3 | 0-100ppm | ±5%(F.S) | ≦50s | 1ppm | 25ppm/50ppm |
| 12 | H2 | 0-1000ppm | ±5%(F.S) | ≦60s | 1ppm | 50ppm/10ppm |
| 13 | HCN | 0-50ppm | ±5%(F.S) | ≦200s | 0.1ppm | 10ppm/20ppm |
| 14 | HCL | 0-20ppm | ±5%(F.S) | ≦60s | 0.1ppm | 5ppm/10ppm |
| 15 | CH4 | 0-100%LEL | ±5%(F.S) | ≦5s | 1%LEL | 25.0%/50.0%LEL |
