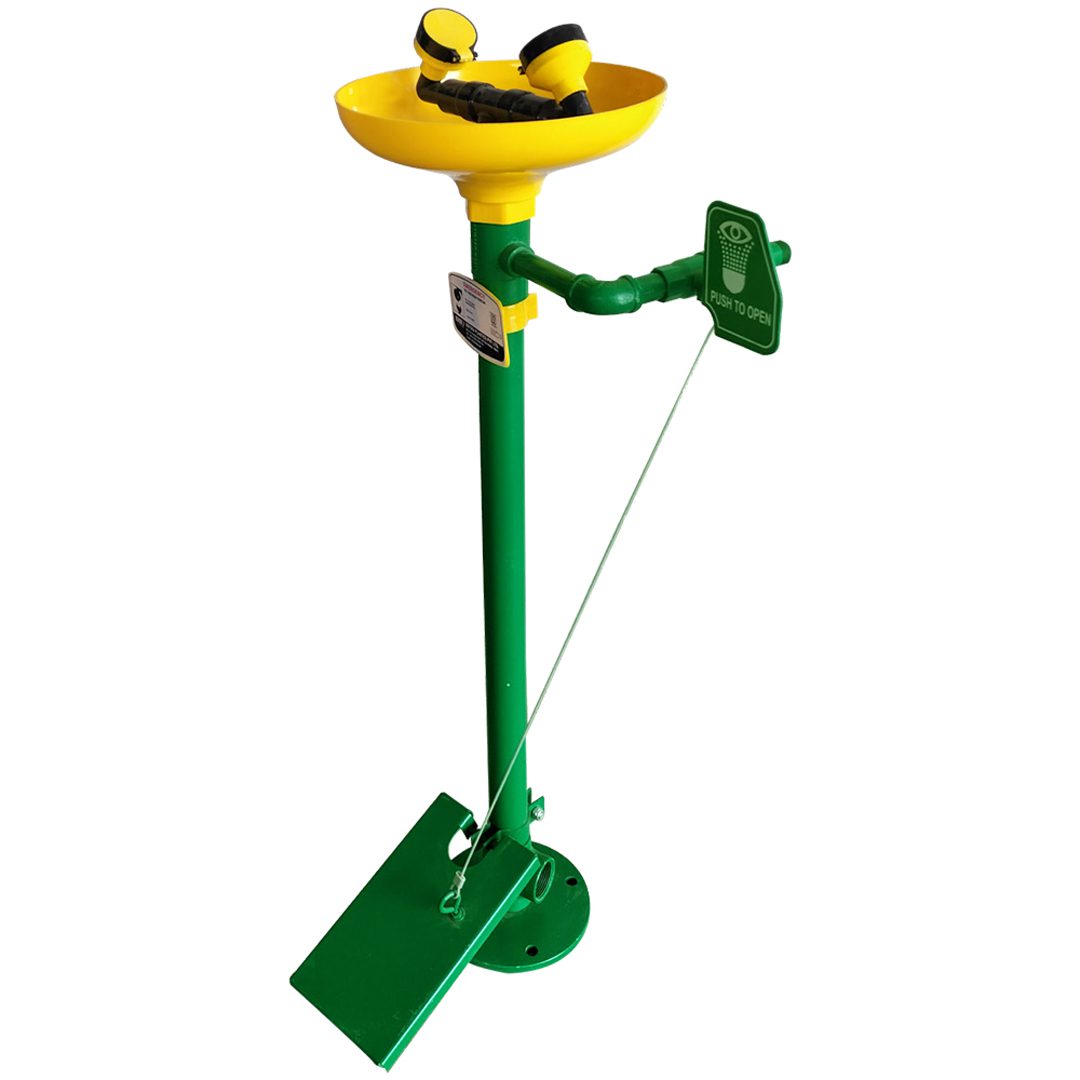

Udyogi 4710GI Emergency Eye/Face Wash Fountain with Pedal

Udyogi 4710GI Emergency EyeFace Wash Fountain with Pedal Automiser heads Twin soft flow automiser head which has aerators to control the stream straightness and diameter, thus reducing splash by aerating the stream. It also controls to save water and reduce energy costs the twin flow has cover which protects from dust and opens with water pressure.

• Emergency eye/face wash fountain operates independently by push lever and foot paddle.
• Operates independently by push lever
• Pipe: ISI marked GI pipe with powder coating for anti-corrosion
• Valve: SS stay open ball valve with yellow ABS push plate
• Bowl: Made of ABS and highly resistant to acid, alkali and oil, etc.
• Automiser heads: Twin soft flow with aerators

– Controls stream straightness and diameter
– Reduces splash
– Controls to save water
– Reduces energy costs
– Cover protects from dust and opens with water pressure

• Activation: Push plate and foot pedal, Single rod operation to open and close the flow
• Water inlet and drain: 1/2 inches BSP inlet and 1¼ inches BSP drain
• Standard: IS: 10592:1982

Udyogi 4710GI Emergency EyeFace Wash Fountain with Pedal two high-flow sprays operated at low pressure

which washes the eye and face Anti-dust cover protects the head from airborne contaminants and automatically opens with water pressure

Distance between two eye wash head is 140 to 200 mm as per standard
