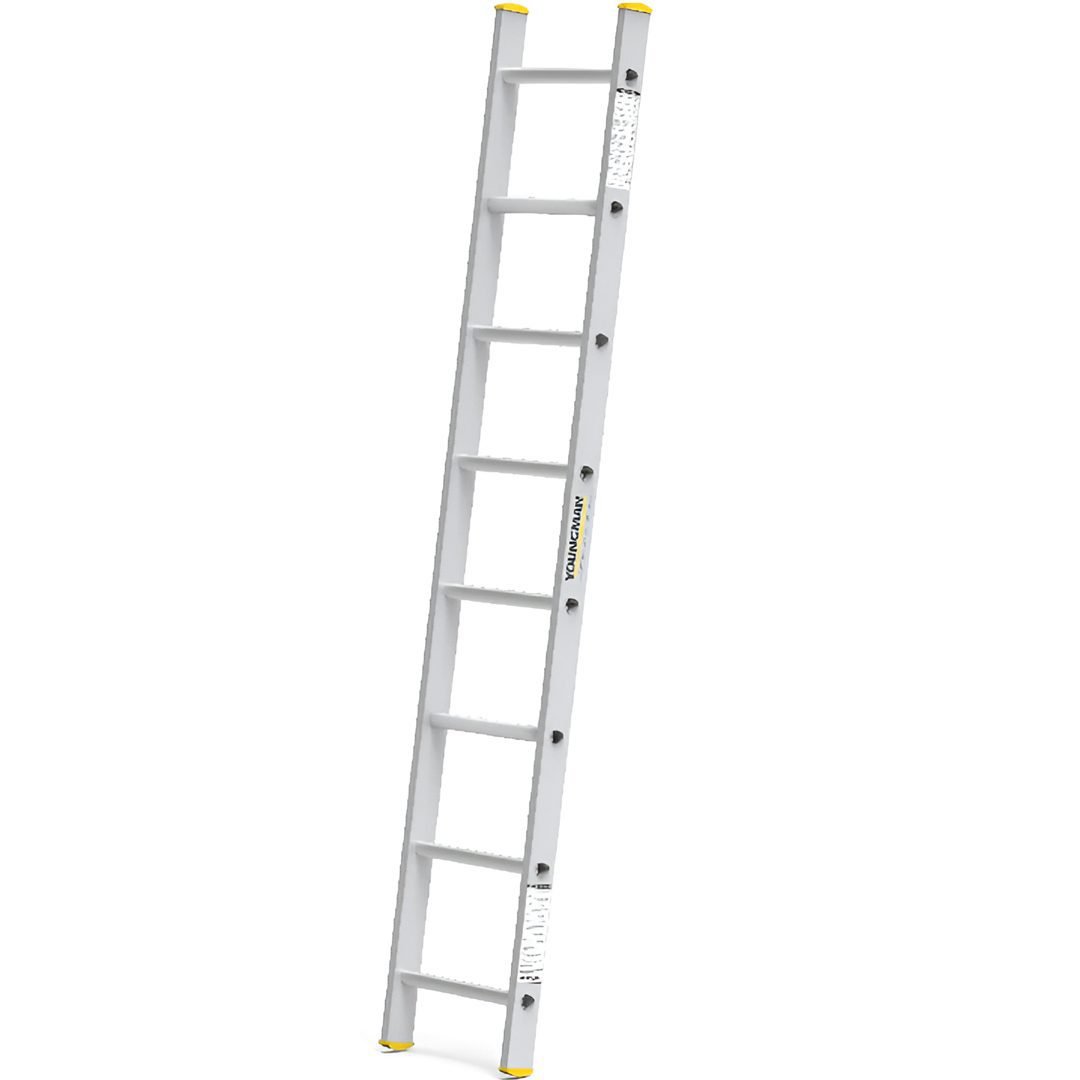

Straight Ladder
Aluminum Wall Support Straight Ladder non-self-supporting portable ladder that consists of two stiles and several rungs.
- Heavy Duty with High-Grade Aluminum
- Slip Resistant D Rungs Step
- Rung Distance 280mm
- Box Section with Size 60X25X2.5 mm
- Both sides High-Grade Rubber Shoe
- High-strength quality crimpled connection between rungs and slits
- Rungs and Slits are extruded from High-grade Aluminum sections
- Anti-skid D Rungs with a pitch of 280mm step difference
- Standard Ladder outside width 420mm.
- Aluminum Wall Support Straight Ladder Light-weight and extremely stable
- Anti-skip pads made of high-quality rubber at the end of ladders to ensure safety and stability
| Item code | Product Name | Height of Ladder (Closed) (mm) | Maximum Standing Height (mm) | Weight of Ladder (kg) | Open Length (mm) | Width of Ladder (mm) | Safe working height (mm) |
| 8140 | Al Straight Ladder 4-Step | 1200 | 455 | 4.52 | 1200 | 400 | 1955 |
| 8141 | Al Straight Ladder 6-Step | 1800 | 1035 | 6.78 | 1800 | 400 | 2535 |
| 8142 | Al Straight Ladder 8 Step | 2400 | 1325 | 9.04 | 2400 | 400 | 2825 |
| 8119 | Al Straight Ladder 9-Step | 2700 | 1615 | 10.17 | 2700 | 400 | 3115 |
| 8143 | Al Straight Ladder 10-Step | 3000 | 1905 | 11.3 | 3000 | 400 | 3405 |
| 8150 | Al Straight Ladder 11-Step | 3300 | 2195 | 12.43 | 3300 | 400 | 3695 |
| 8144 | Al Straight Ladder 12-Step | 3600 | 2485 | 13.56 | 3600 | 400 | 3985 |
| 8145 | Al Straight Ladder 14-Step | 4200 | 3065 | 15.82 | 4200 | 400 | 4565 |
| 8146 | Al Straight Ladder 15-Step | 4500 | 3355 | 16.95 | 4500 | 400 | 4855 |
| 8147 | Al Straight Ladder 16-Step | 4800 | 3645 | 18.08 | 4800 | 400 | 5145 |
| 8197 | Al Straight Ladder 17-Step | 5100 | 3935 | 19.21 | 5100 | 400 | 5435 |
| 8148 | Al Straight Ladder 18-Step | 5400 | 4225 | 20.34 | 5400 | 400 | 5725 |
| 8149 | Al Straight Ladder 20-Step | 6000 | 4805 | 22.6 | 6000 | 400 | 630 |
