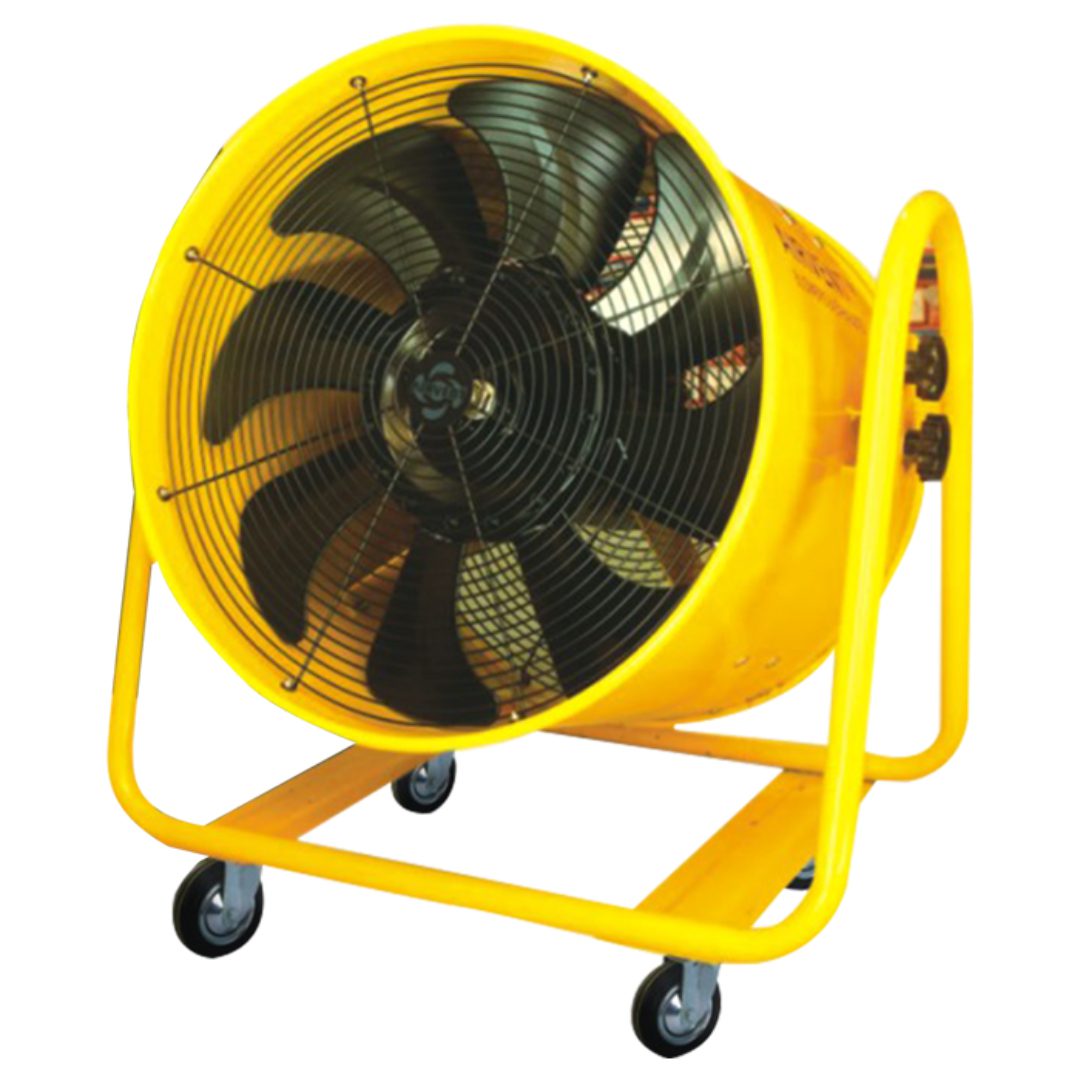

Airvent 3200M

Description:

The Largest confined space Blower Unit available in the markets This model has been designed to meet all fire & Emergency service needs,

The units are only available in non-Explosion Proof configurations to satisfy almost any application.

This model produces the highest volume of air.

All these electors are finished in a tough powder coat finish with cadmium plated safety guards.

All motors are ball bearing and require no maintenance.

with 6 feet of cord without a specific plug.

The Airvent 3200M Series provides high-performance ventilation for industrial environments. Durable, efficient, and designed for safe air circulation in demanding conditions.

Key Features:

  • Airvent 3200M Heavy Duty Powder Coated Armour sheet Housing construction
  • Equipped with 4.0 HP Motor.
  • 8 Blade precision balanced Aluminium Alloy Impeller
  • Motor equipped with thermal switch for overheat protection
  • Engineered to move high volumes of air
  • This model is equipped with heavy duty locking caster wheels and adjustable angle for easy mobility and setup.
  • Dynamically designed fan housing to optimizes airflow efficiency
  • Protective guards meeting OSHA Standards.
  • Impeller is made of heavy duty aluminium alloy & is designed for high Static pressure providing higher airflow rate
  • Compliance: CE /ATEX Certified EXdIIBT4
  • 3200M Weight: 90 Kg

Share On:

Product Details

Model - 1

Dia

Type

Voltage

Frequency

Speed

Capacity

Dimensions (MM)

Airvent 3200M

32"

Non Explosion Proof

240 V

50 Hz

960 RPM

15000 CFM

1035 x 995 x 615mm

Model - 2

Dia

Type

Voltage

Frequency

Speed

Capacity

Dimensions (MM)

32"

Explosion Proof

240 V

50 Hz

960 RPM

15000 CFM

1035 x 995 x 615mm

Model

Airvent 3200M

Dia

32"

32"

Type

Non Explosion Proof

Explosion Proof

Voltage

240 V

240 V

Frequency

50 Hz

50 Hz

Speed

960 RPM

960 RPM

Capacity

15000 CFM

15000 CFM

Dimensions (MM)

1035 x 995 x 615mm

1035 x 995 x 615mm

Model

Dia

Type

Voltage

Frequency

Speed

Capacity

Dimensions (MM)

Airvent 3200M

32"

Non Explosion Proof

240 V

50 Hz

960 RPM

15000 CFM

1035 x 995 x 615mm

32"

Explosion Proof

240 V

50 Hz

960 RPM

15000 CFM

1035 x 995 x 615mm
